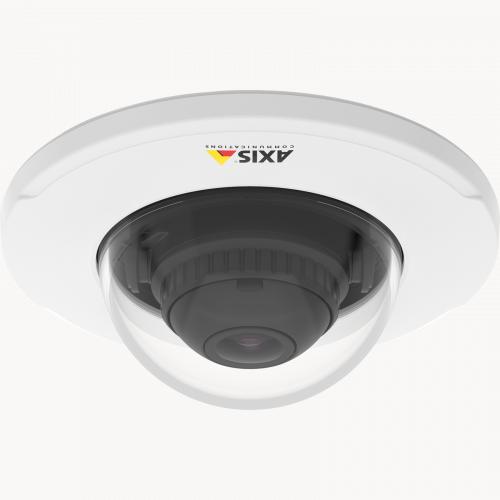

AXIS M3016 Network Camera
AXIS M3016 Network Camera
Ultra-discreet, recessed-mount 3 MP fixed mini dome
- Ultra-discreet design
- 3 MP video in full frame rate
- Axis Zipstream technology
- Axis Corridor Format
- Easy recessed installation
AXIS M3016 Network Camera is designed for quick and easy recessed installation. Delivering 3 MP video at full frame rate in a small and compact design, AXIS M3016 is perfect for stylish retail stores and other areas that require discreet surveillance.
Designed for discretion
AXIS M3016 is seriously discreet. Specially designed for recessed mounting, this small, unobtrusive camera resembles a spotlight. Its cover is optionally available in black and is also easy to repaint to blend in anywhere.
Models: AXIS M3016
Camera
| Image sensor | CMOS |
| Image sensor size | 1/3 |
| Lightfinder | – |
| Wide dynamic range | WDR |
| Min illumination/ light sensitivity (Color) | 0.35 lux |
| Min illumination/ light sensitivity (B/W) | – |
Video
| Max video resolution | 2016×1512 |
| Max frames per second | 25/30 |
| Day and Night functionality | – |
| Electronic image stabilization | – |
Lens
| Focal length | 1.8 mm |
| Horizontal field of view | 152 ° |
| Vertical field of view | 80 ° |
Pan, Tilt, Zoom
| Remote PTRZ | – |
Compression
| Zipstream | Yes |
| H.264 | High, Main |
| H.265 | Yes |
| Motion JPEG | Yes |
Audio
| Audio Support | – |
| Built-in microphone | – |
Network
| PoE Class | 1 |
| Wireless | – |
Security
| Signed firmware | Yes |
| Secure boot | – |
General
| Remote focus | – |
| Remote zoom | – |
| Built-in IR | – |
| Local storage (memory card slot) | Yes |
| Operating temperature | 0 to 40 °C |
| Outdoor Ready | – |
| Vandal rating | – |
| IP rating | – |
| Designed for repaint | Yes |
| Sustainability | PVC free |
