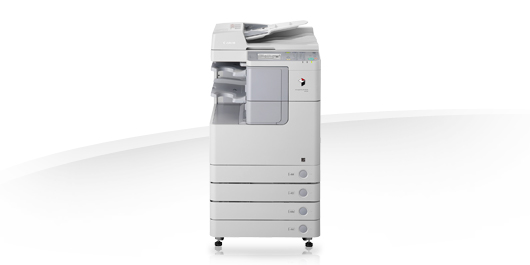

Canon imageRUNNER 2530i
Canon imageRUNNER 2530i
| Brand name | Canon |
| Item Weight | 68 Kg |
| Product Dimensions | 68 x 56.5 x 80.6 cm |
| Item model number | 2835B008 |
| Series | Imagerunner 2530I |
| RAM Size | 512 MB |
Get the Canon imageRUNNER 2530i at the best price in Kenya from Wodex Technologies
Canon imageRUNNER 2530i
This compact device offers small and medium workgroups cost-effective black and white output at up to 30 ppm/CPM, color scanning, and advanced digital send functionality. With an intuitive touch-screen display, excellent energy efficiency, and optional inner finisher, this device will save time and cost.
Canon imageRUNNER 2530i Benefits
- Print, copy, scan, send, and optional fax
- Up to 30 ppm
- Up to 2,300 sheet maximum paper capacity
- Intuitive touch-screen display
- Extensive configuration options
- Network ready, PCL and optional PS support
- Energy efficient
- uniFLOW and e-Maintenance compatibility
Canon imageRUNNER 2530i Detailed Features
Take a more detailed look into the Canon imageRUNNER 2530i
Advanced Productivity
The daily demands of fast black and white printing are met with speeds up to 30 ppm and highly responsive recovery from sleep mode. Combined with up to 2,300 sheet paper capacity, these Multifunctional Printers (MFPs) are ideal for busy, small, and medium workgroups with high print copy volumes.
A large touch-screen display with intuitive menus makes the imageRUNNER 2500 series easy to use, enabling users to save time and do more. With color send users can quickly and efficiently scan in color straight to a variety of destinations. In addition, these models offer the convenience of scanning directly to a USB memory stick.
Cost control
Compatibility with Canon’s uniFLOW software provides greater transparency of costs, allowing you to track as well as charge specific print jobs to individuals, departments, locations, and projects.
Compatibility with Canon’s e-Maintenance can further improve uptime through remote diagnostics, automated meter readings and consumables monitoring to reduce administrative time. And with click charging, you only pay for what you print giving you greater control of costs.
Security
A built-in security feature means prints are “held” until the relevant user identifies themselves, using a PIN number. This prevents documents from piling up in output trays and being viewed by unauthorized eyes. Up to 100 can be stored at once. Alternatively, with Canon’s uniFLOW solution, this can be combined with card security systems, enabling users to instantly access and print as many jobs as they wish. And once printed, they’re automatically deleted for watertight document control.
Network Integration
This model can be easily connected to your IT network, as well as integrated into your existing IT systems with PCL and optional PostScript support. Once connected, iW Management Console (iWMC) enables you to manage and monitor your whole fleet, from a single point of control.
Lower environmental impact
These ENERGY STAR® qualified models offer one of the lowest TEC (Typical Electricity Consumption)* ratings in their class and consume as little as 1.5 W in sleep mode. Highly productive double-sided printing, as standard, saves more cost and time as well as paper.
* Methodology defined by ENERGY STAR (www.eu-energystar.org)
Canon imageRUNNER 2530iBASIC SPECIFICATIONS
Type
Desktop or Free-standing, (Reader-Printer Combined)
Maximum Original Size
A3
Copy Sizes
Cassette 1,3 and 4: A3, A4, A4R, A5R
Custom size: 139.7 to 297mm x 182 to 432mm
Cassette 2: A3, A4, A4R, A5R, Envelope (with optional Envelope Feeder Attachment-D1)
Stack Bypass: A3, A4, A4R, A5R, Envelopes
Custom size: 99 to 297mm x 148 to 432 mm
Resolution
Reading: 600dpi × 600dpi
Copying: 600dpi × 600dpi
Printing: 600dpi × 600dpi, 1200dpi x 1200dpi (UFRll-LT only)
Number of Tones: 256 Gradations
Copy/Print Speed
A4:
imageRUNNER 2545i/2545 : 45ppm (BW)
imageRUNNER 2535i/2535 : 35ppm (BW)
imageRUNNER 2530i/2530 : 30ppm (BW)
imageRUNNER 2525i/2525 : 25ppm (BW)
imageRUNNER 2520i/2520 : 20ppm (BW)
A3:
imageRUNNER 2545i/2545 : 22ppm (BW)
imageRUNNER 2535i/2535 : 22ppm (BW)
imageRUNNER 2530i/2530 : 15ppm (BW)
imageRUNNER 2525i/2525 : 15ppm (BW)
imageRUNNER 2520i/2520 : 15ppm (BW)
Magnification
Zoom: 25-400%
Fixed: 25%, 50%, 70%, 100%, 141%, 200%, 400%
First Copy Time
Black-and-White: 3.9sec (45/35 ppm model), 5.4sec (30/25 ppm model), 6.4sec (20 ppm model)
Warm-Up Time
30 seconds
Multiple Copies/Prints
1 to 999 sheets
Duplexing
Standard
Paper Weight
Cassette: 64 to 90g/m2
Stack Bypass: 64 to 128g/m2
Duplex: 64 to 80g/m2
CASSETTE
Paper Capacity
Cassette 1: 550 sheets (80g/m2), (250 sheets for the imageRUNNER 2520i/ 2520)
Cassette 2: 550 sheets for imageRUNNER 2525/i, 2530/i, 2535/i, 2545/i. 50 envelopes (with optional Envelope Feeder Attachment-D1)
Stack Bypass: 100 sheets (A4,A4R,A5;80g/m2), 50 sheets(A3;80g/m2)
Optional:
550 sheets x 2 cassettes (80g/m2)
550 sheets x 1 cassette for imageRUNNER 2520/2520i only
Paper Deck: None
Total capacity: 2,300 sheets,(2,000 sheets for the imageRUNNER 2520i/ 2520)
CPU
Canon Custom Processor, 400MHz
Memory
512MB (imageRUNNER 2500 i models), 256MB (imageRUNNER 2500 non i models)
Hard Disk Drive
None
Interface
Ethernet (100Base-TX/10Base-T), USB Host I/F 2.0 x 1 port, USB Device 1.0 x 1 port
Power Supply
220-240V AC, 50/60Hz, 4.2A (45/35 ppm model), 220-240V AC, 50/60Hz, 3.3A (30/25/20 ppm model)
Power Consumption
1.827kW (45/35ppm model), 1.345kW (30/25ppm), 1.542kW (20ppm model)
Lot26 (http://www.canon-europe.com/For_Work/Lot26/index.aspx)
Dimensions
imageRUNNER 2545i/ 2545/ 2535i/ 2535 :
565 mm x 680 mm x 806 mm (with the platen cover)
565 mm x 689 mm x 907mm (with the DADF)
imageRUNNER 2530i/ 2530/ 2525i/ 2525 :
565 mm x 680 mm x 806 mm (with the platen cover)
565 mm x 689 mm x 896 mm (with the DADF)
imageRUNNER 2520i/ 2520 :
565 mm x 680 mm x 681 mm (with the platen cover)
565 mm x 689 mm x 771 mm (with the DADF)
Weight
imageRUNNER 2545i/2535i :
Approx. 78.4 kg, imageRUNNER 2545/2535: Approx. 70.5 kg
imageRUNNER 2530i/2525i :
Approx. 77.5 kg, imageRUNNER 2530/2525: Approx. 68.0 kg
imageRUNNER 2520i :
Approx. 56.0 kg, imageRUNNER 2520: Approx. 50.5 kg
MODEL NAME
PDL
UFRII-LT, PCL5e/6 (standard on i models, optional on non i models), PostScript level 3 emulation (optional)
Resolution
600 x 600dpi, 1200dpi x 1200dpi (UFRll-LT only)
Memory
512MB (Canon imageRUNNER 2530i series i models), 256MB (imageRUNNER 2500 series non i models)
Hard Disk
None
CPU
Canon Custom Processor, 400MHz
PS Fonts
Roman 136
PCL Fonts
Roman 93
Supported OS
PCL: Windows 2000/ XP/ Server 2003/ Vista/ Server 2008/ Windows 7
Postscript level 3 emulation: Windows 2000/ XP/ Server 2003/ Vista/ Server 2008/ Windows 7, Mac OS X (10.4 or later)
UFRII-LT: Windows 2000/ XP/ Server 2003/ Vista/ Server 2008/ Windows 7, Mac OS X (10.4 or later), Linux
Mac-PPD: Mac OS X 10.4 or later
Interface
Ethernet (100Base-TX/10Base-T)
Network Protocol
TCP/IP(LPD/ Port9100, HTTP), SMB, SNMP v1, WSD, IPv4/ IPv6 support
Pull Scan
Network TWAIN Driver (75/ 100/ 150/ 200/ 300dpi 8bit color / 75-600dpi 1bit Black & white)
UNIVERSAL SEND KIT
Optional/Standard
CLR SEND KIT-Y1 (standard on i models, optional on non i models)
MODEL NAME
Scan speed
A4, 300dpi, BW/Color: 45/34 ipm (45/ 35 ppm model), 25/13ipm( 30/ 25/ 20 ppm model)
Scan Resolution
BW: 100 x 100 dpi, 150 x 150 dpi, 200 x 100dpi, 200 x 200 dpi, 200 x 400 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
CL:100 x 100 dpi,150 x 150 dpi, 200 x 200 dpi, 300 x 300dpi
Destinations
E-Mail/ Internet FAX(SMTP), PC/Server (SMB,FTP), USB memory key
Address Book
Local (Max. 500)
File Format
TIFF, JPEG, PDF, High compression PDF
Searchable PDF (optional with SEARCHABLE PDF-C1 )
DADF
Optional/Standard
DADF-AA1 optional for imageRUNNER 2545/2535, standard for imageRUNNER 2545i/2535i.
DADF-AB1 optional for imageRUNNER 2530/2525/2520, standard for imageRUNNER 2530i/2525i/2520i
MODEL NAME
Paper Size
imageRUNNER 2545/2535: A3, A4, A4R, A5, A5R
imageRUNNER 2530/2525/2520: A3, A4, A4R, A5, A5R
Custom size 139.7 to 297mm x 182 to 432mm
Paper Weight
imageRUNNER 2545/2535:
Single sided original: 42 to 128 g/m2
Double sided original: 50 to 128 g/m2
imageRUNNER 2530/2525/2520:
Single sided original: 37 to 128 g/m2
Double sided original: 50 to 128 g/m2
Max. Number of Originals
imageRUNNER 2545/2535:
100 sheets (A4, A4R, A5, A5R: 80 g/m2), 50 sheets (A3: 80 g/m2)
imageRUNNER 2530/2525/2520:
50 sheets (A4, A4R, A5, A5R: 80 g/m2), 25 sheets (A3: 80 g/m2)
Document Scanning Speed
imageRUNNER 2545/2535:
Copy: 45ipm (A4, 600 x 600 dpi: BW )
Scan: 45/34 ipm (A4, 600 x 600 dpi: BW / 300 x 300 dpi: Colour)
imageRUNNER 2530/2525/2520:
Copy: 25ipm (A4, 600 x 600 dpi: BW )
Scan: 25/13 ipm (A4, 600 x 600 dpi:BW / 300 x 300 dpi: Colour )
Dimensions
imageRUNNER 2545/2535: 565 mm x 540 mm x 137 mm
imageRUNNER 2530/2525/2520: 565 mm x 544 mm x 126 mm
Canon imageRUNNER 2530i Weight
imageRUNNER 2545/2535: Approx. 7.9 kg
imageRUNNER 2530/2525/2520: Approx. 7.0 kg
CASSETTE FEEDING MODULE
Model Name
CASSETTE UNIT-W1 for imageRUNNER 2520/i
CST. Feeding UNIT-AE1 for all models
Canon imageRUNNER 2530i Type
CASSETTE UNIT-W1: Front-loading adjustable drawers
CST. Feeding UNIT-AE1: 2 Front-loading adjustable drawers
Canon imageRUNNER 2530i Paper Weight
CASSETTE UNIT-W1: 64 to 90g/m2
CST. Feeding UNIT-AE1: 64 to 90 g/m2
Canon imageRUNNER 2530i Paper Capacity
CASSETTE UNIT-W1: 550 sheets (80 g/m2) x 1 cassette
CST. Feeding UNIT-AE1: 550 sheets(80 g/m2) x 2 cassettes
Canon imageRUNNER 2530i Dimensions (W x D x H)
CASSETTE UNIT-W1: 565 mm x 680 mm x 97 mm
CST. Feeding UNIT-AE1: 565 mm x 680 mm x 248 mm
Canon imageRUNNER 2530i Weight
CASSETTE UNIT-W1: Approx. 12.8kg
CST. Feeding UNIT-AE1: Approx. 24.0kg
Canon imageRUNNER 2530i FINISHER
Optional/Standard
Optional Inner Finisher-B1 for all models
MODEL NAME
Number of Trays
One stack tray (Optional 2nd Tray; INNER FIN ADD. TRAY-B1)
Tray Capacity
A4 – A5R:1000 sheets (or 125 mm in height)
A3, A4R: 500 sheets (or 62.5 mm in height)
Staple Position
Corner, Double
Staple Capacity
A4: 50 sheets x 30 sets
A4R/ A3: 30 sheets x 15 sets
MODEL NAME
Tray Capacity
Tray A – A4: 250 sheets, A3: 100 sheets
Tray B – A4:100 sheets, A3: 50 sheets
Weight
Approx. 0.6kg
Canon imageRUNNER 2530i OTHER ACCESSORIES
Other Accessories (Optional)
Platen Cover Type P: Platen cover to be selected when configuring Canon imageRUNNER 2530i 2525/2530 without DADF
Platen Cover Type Q: Platen cover to be selected when configuring Canon imageRUNNER 2530i 2535/2545 without DADF
Stamp Ink Cartridge-C1: Stamp Ink Cartridge
Stamp unit-B1: Stamp Unit
ADF Access Handle-A1:Attaches to the document feeder, making access easier for seated users
PCL Printer Kit-AF1: Supports PCL5e and PCL6 printing for non-i Models
PS Printer Kit-AF1: Supports PostScript Level 3 Emulation printing
Barcode Printing Kit-B1: Provides Barcode printing capability using Jet Caps technology
Super G3 Fax Board-AG1: Add fax functionality
FL Cassette-AJ1: This spare 550-sheet tray for cassette “1” of Canon imageRUNNER 2530i 2525/2525i/2530/3530i/2535/2535i/2545/2545i
FL Cassette-AK1: This spare 550-sheet tray for cassette “2” of Canon imageRUNNER 2530i 2525/2525i/2530/3530i/2535/2535i/2545/2545i
or for Cassette Feeding Unit-AE1 or Cassette Module-W1 allows you to swap paper sizes without changing the printer settings
FL Cassette-AL1: This spare 250-sheet tray for cassette “1” of Canon imageRUNNER 2530i 2520/2520i allows you to swap paper sizes without changing the printer settings
Cassette Spacer-A1: Adjusts the height for 250-sheet cassette when combined with optional Cassette Feeding Unit-AE1 or Cassette Module-W1 on imageRUNNER 2520/2520i only
Envelope Feeder Attachment-D1: Attaches to cassette “2” for easy envelope feeding
Canon imageRUNNER 2530i Plain Pedestal: The pedestal substitutes for the cassette feeding unit and raises the device,
2 Way Unit-B1: Enhances the double-sided print productivity up to 100%
Reversal Pass Unit(2-Way Unit) option for Canon imageRUNNER 2530i 2520/2520i/2525/2530
Staple-J1:Staples for Inner Finisher-B1
Document Tray-J1: Handy tray that attaches to the side of the device and provides a location for placing originals
Power Supply Unit-U1: Power Supply Unit.
Card Reader Attachment-D3: Attachment kit for Card Reader-F1
Canon Card Reader-F1: Physical card access system that limits system access to authorized users
USB Application 3-Port Interface Kit-A1: 3-Port USB interface kit for USB memory
CCVI I/F Cable-A1: Interface Kit for Coin-Vender
C-EXV33 TONER BK: Toner for Canon imageRUNNER 2530i2520/2520i/2525/2525i/2530/2530i
C-EXV32 TONER BK: Toner for Canon imageRUNNER 2530i 2535/2535i/2545/2545i
